Applications:

• For sewing medium to extra heavy-weight materials included leather, canvas and vinyl.
• Designed for stitching such products as luggage, rope and carpets.

Features:

• Extra large transverse horizontal axis rotary hook
• Extra wide zig-zag
• 1200* stitches per inch
• Puller available
• Features by Model

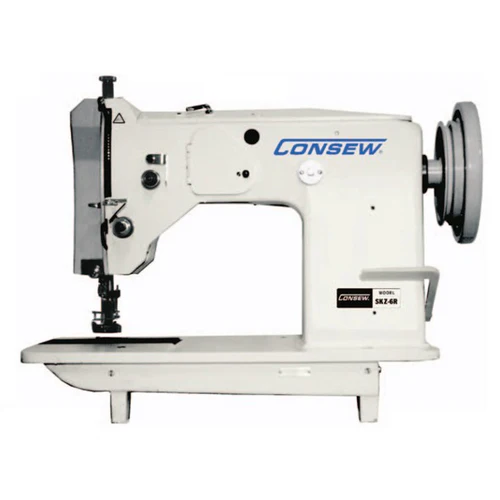

  • SKZ-6R – Federal stitch type 304

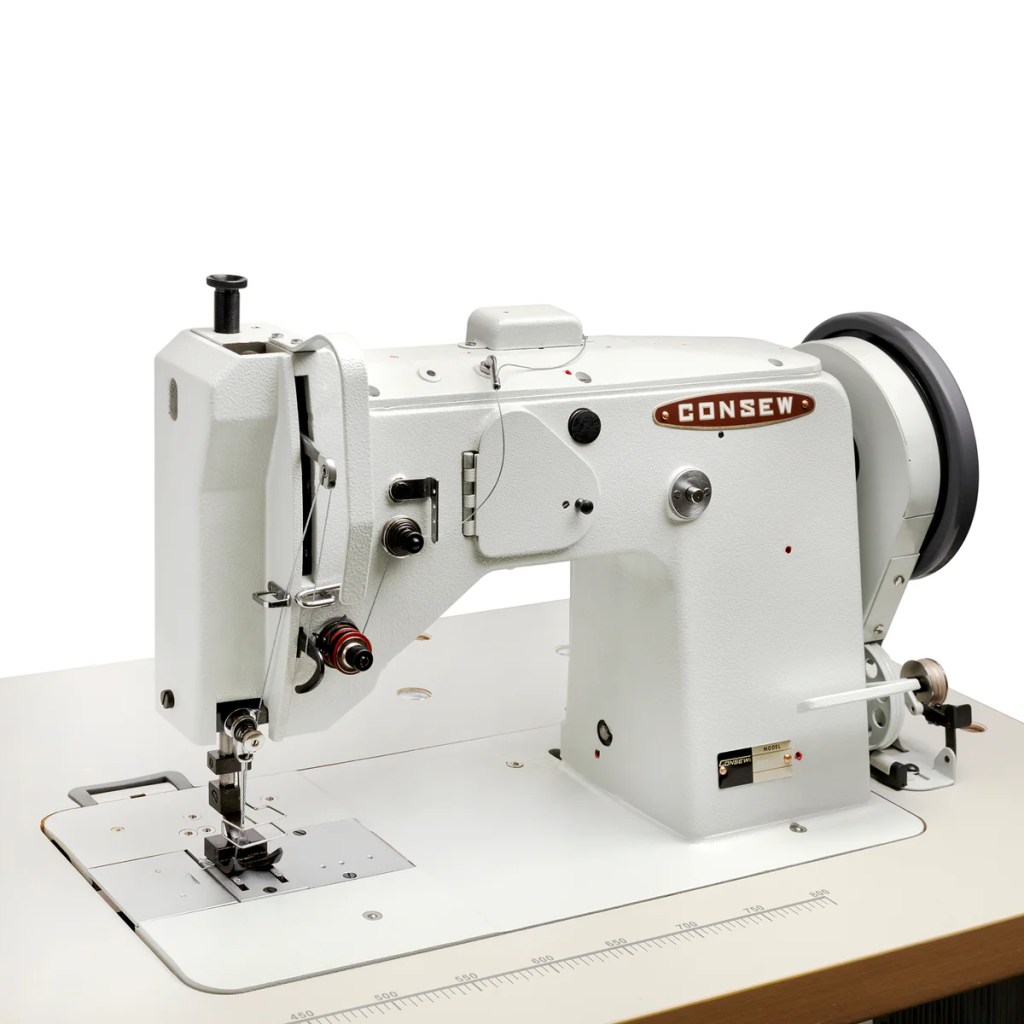

  • SKZ-6R-3 – Federal stitch type 308, Reverse stitching

Specifications:

• Speed, Max. (S.P.M.): 1200 *
• Clearance Under Foot: 33/64″ (13 mm)
• Needle Bar Stroke: 2″ (50 mm)
• Stitch Length, Max. 2 s.p.i. (14 mm)
• Needle: 214 x 1
• Bobbin:
  • Metal: 1441
  • Pre-wound: 57
• Hook: 1855
• Bed Size: 10″ x 20-15/32″ (250 x 520 mm)
• Work Space: 10-5/8″ (270 mm)
• Stitch Width, Max.: 1/2″ (12.7 mm)
• Stitch Type: 301
  • SKZ-6: 304
  • SKZ-6-3: 308

* Speed depends on thread, material and operation.
