Applications:

• For sewing light to heavy-weight materials such as leather, vinyl, upholstery, synthetics, canvas and various coated and laminated products.
• Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, sails, tents, camping trailer covers, awnings, umbrellas, tops, bags, luggage, handbags, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, canvas shoes, slippers and orthopedic appliances, etc.
• Suitable for double needle seaming, binding, taping and piping operations.

Features:

• Compound feed, walking foot mechanism insures positive and even feeding of the material
• Safety clutch protects the hook(s) from being damaged in case of accidental strain
• Reverse feed operated by foot petal
• Centralized arm lubrication
• Reservoir-oiled hook(s) with micrometric control valve
• Presser foot locking lever
• Built-in bobbin winder
• Push button stitch regulator
• Extra heavy duty top shaft with four ball bearings for support
• Extra large bobbin(s) and vertical axis hook(s) for use of heavy thread; also allows for long operation between bobbin changes
• High lift
• Front handwheel (on 30: arm) allows for easy positioning of the needle(s)
• 745RP is available with optional factory-installed, bottom driven, feed-synchronized puller. Puller mechanism is completely concealed and does not restrict work space.

Specifications:

• Speed, Max. (S.P.M.): 1500 *
• Clearance Under Foot: 25/32″ (20 mm)
• Needle Bar Stroke: 1-27/32″ (46.8 mm)
• Stitch Length, Max. 25/64″ (10 mm)
• Needle: 7 x 3 (DYx3)
• Bobbin: 70141
• Hook: 70140
• Stitch Type: 301

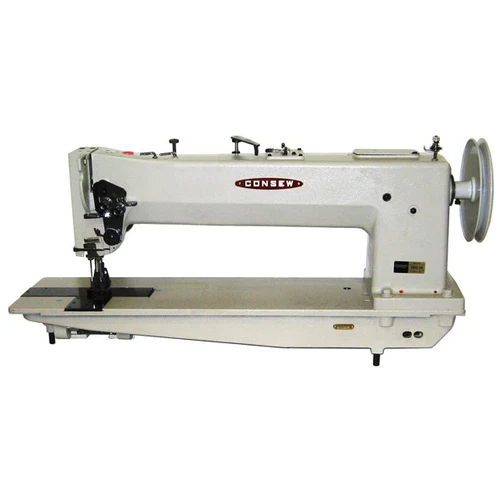

• 745R10:
  • Bed Size: 20-7/16″ x 9-1/16″ (519 x 230 mm)
  • Work Space: 10″ (254 mm)
• 745R20:
  • Bed Size: 33-5/16″ x 9-1/16″ (846 x 230 mm)
  • Work Space: 20″ (508 mm)

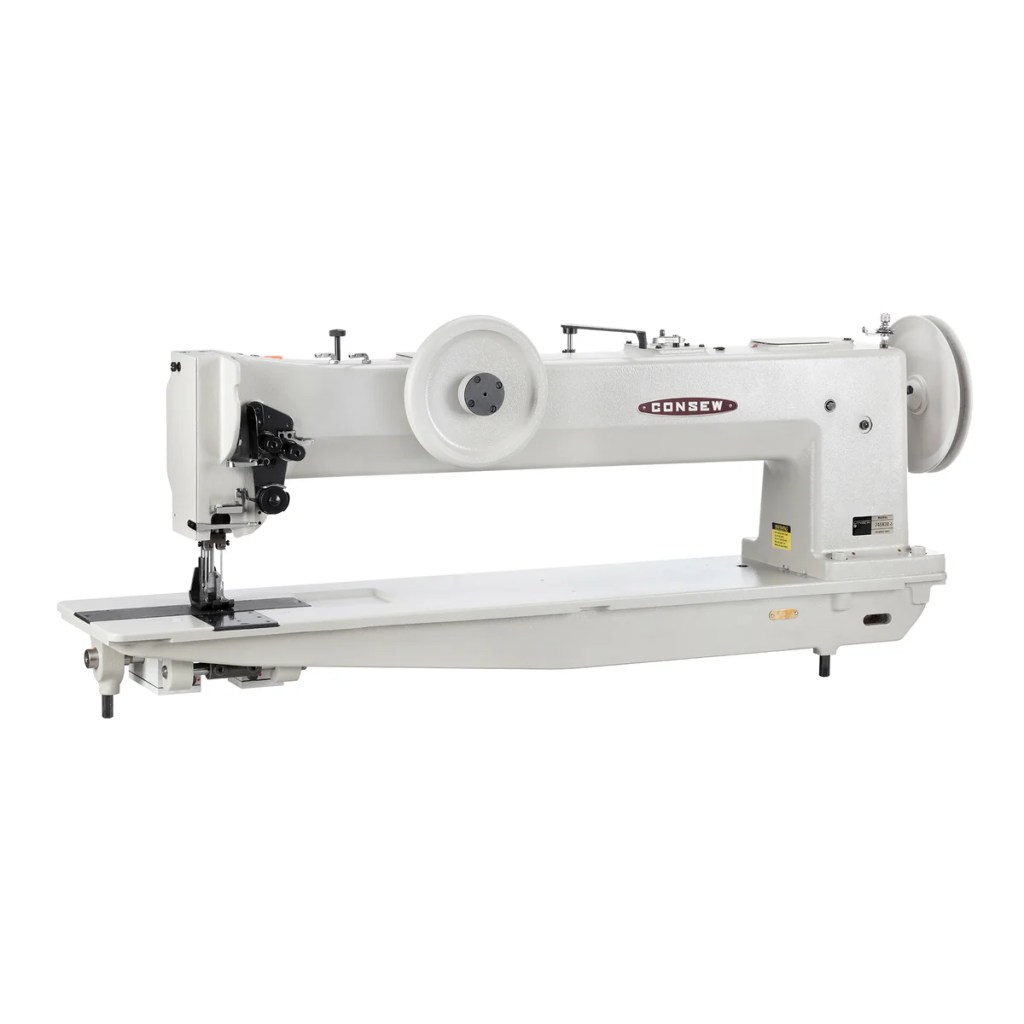

• 745R30:
  • Bed Size: 43-5/16″ x 9-1/16″ (1100 x 230 mm)
  • Work Space: 30″ (762 mm)

* Speed depends on thread, material and operation.
